VIBRO ROLLS - VIBRATORY FINISHING MACHINES

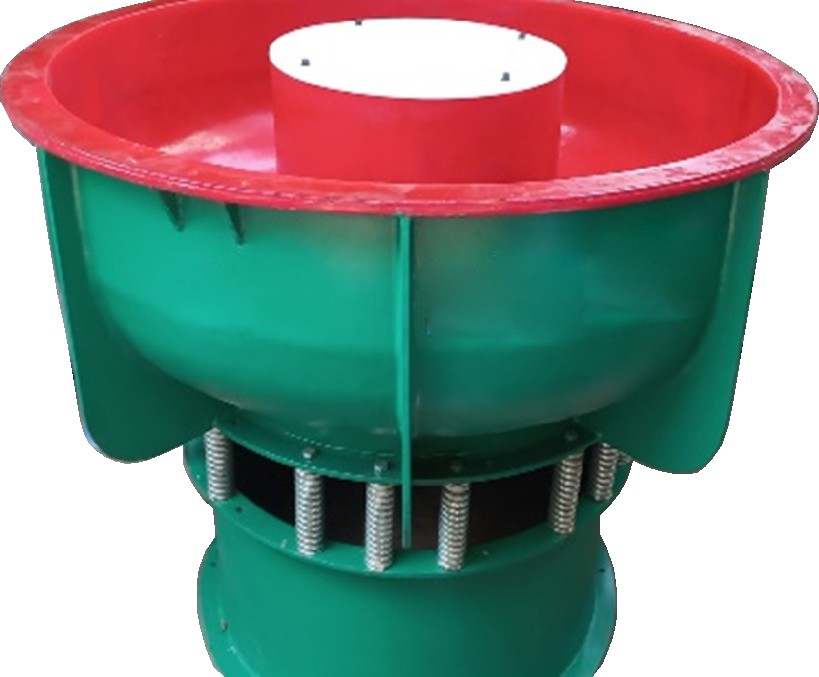

Vibro Rolls - Vibratory Finishing Machines (Std Models without Separation facility)
| Model | Total Volume (Litres) | Outer Diameter (mm) | Chamber Width (mm) | Power (HP x RPM) |
|---|---|---|---|---|
| VR-60 | 60 | 840 | 195 | 0.5 x 1440 |
| VR-120 | 120 | 1020 | 225 | 1 x 1440 |
| VR-220 | 220 | 1165 | 265 | 1.5 x 1440 |
| VR-350 | 350 | 1335 | 340 | 2 x 1440 |
| VR-500 | 500 | 1420 | 415 | 2.5 x 1440 |
| VR-600 | 600 | 1620 | 500 | 5 x 960 |
| VR-800 | 800 | 1680 | 500 | 7.5 x 960 |
| VR-1000 | 1000 | 1890 | 520 | 10 x 1440 |
| VR-1200 | 1200 | 1960 | 590 | 10 x 1440 |
Vibro Rolls - Vibratory Finishing Machines (Std BB Models without Seperation facility)
| Model | Total Volume (Litres) | Outer Diameter (mm) | Chamber Width (mm) | Power (HP x RPM) |
|---|---|---|---|---|
| VR-60 BB | 60 | 840 | 195 | 1 x 1440 |
| VR-120 BB | 120 | 1020 | 225 | 1.5 x 1440 |
| VR-220 BB | 220 | 1165 | 265 | 2 x 1440 |

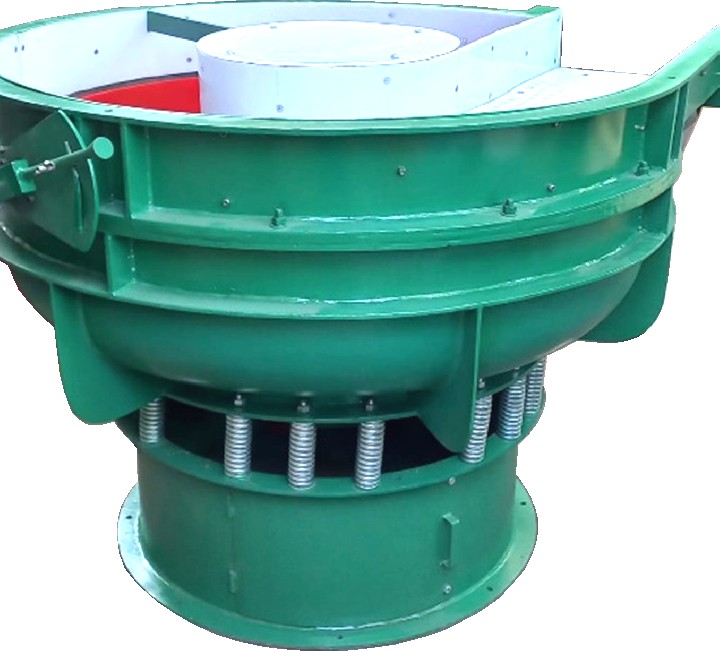

Vibro Rolls - Vibratory Finishing Machines (Separation with reverse direction facility)
| Model | Total Volume (Litres) | Outer Diameter (mm) | Chamber Width (mm) | Power (HP x RPM) |
|---|---|---|---|---|
| VR-70 S | 70 | 840 | 195 | 0.5 x 1440 |
| VR-120 S | 120 | 1020 | 225 | 1 x 1440 |
| VR-220 S | 220 | 1165 | 265 | 1.5 x 1440 |
| VR-400 S | 400 | 1360 | 350 | 2 x 1440 |
| VR-700 S | 700 | 1860 | 510 | 5 x 1440 |
| VR-1000 S | 1000 | 1865 | 520 | 7.5 x 1440 |
Vibro Rolls - Spiral Vibratory Finishing Machines (Separation - 100%)
| Model | Total Volume (Litres) | Outer Diameter (mm) | Chamber Width (mm) | Power (HP x RPM) |
|---|---|---|---|---|
| VR-120 SP | 120 | 1130 | 230 | 1 x 1440 |
| VR-250 SP | 250 | 1290 | 290 | 2 x 1440 |
| VR-450 SP | 450 | 1530 | 310 | 5 x 1440 |
| VR-850 SP | 850 | 1800 | 410 | 10 x 1440 |
Vibro Rolls - Drier (For Stain Free Drying)
| Model | Heater (kw) | Outer Diameter (mm) | Chamber Width (mm) | Power (HP x RPM) |
|---|---|---|---|---|
| VR-70 D | 0.5 | 850 | 220 | 1 x 1440 |
| VR-130 D | 1 | 1020 | 240 | 1 x 1440 |
| VR-200 D | 1.5 | 1170 | 280 | 2 x 1440 |
| VR-250 D | 2 | 1400 | 325 | 3 x 1440 |
| VR-300 D | 2 | 1420 | 410 | 3 x 1440 |
| VR-600 D | 5 | 1540 | 500 | 4 x 1440 |

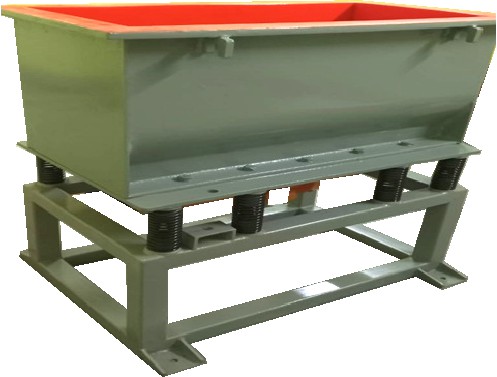

Rectangular Vibratory Finishing Machines
The top advantage of rectangular finishing machines is its ability to finish large, long workpieces in high productivity which vibratory bowl cannot achieve.
The machine comes with detachable compartmentalization, which can be tweaked to meet the varying demands of the workpiece, by virtue of their geometry.
Possesses a highly wear-resistant work tub, lined with polyurethane, to increase its service
Models 100 to 625 litre capacity Machines are provided

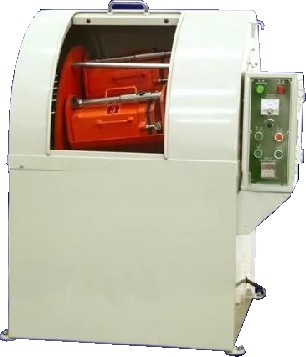

Barrel Finishing Machines (BFM)
Advantage of Barrel Finishing Machine is the high G-forces generated during the process significantly speed up the removal of material and the achievement of the desired surface finish. The controlled environment of centrifugal finishing provides a uniform and consistent finish across all workpieces
Models 40 to 200 litre capacity Machines are provided
Disc Finishing Machines (DFM)
Processing is carried out in an open drum (the process container) with a base plate in the form of turntable or disc. The workpieces, together with a suitable polishing or grinding granulate, are set in motion by the rotation of the disc to create a toroidal stream inside the stationary drum.
Models 40 to 400 litre capacity Machines are provided

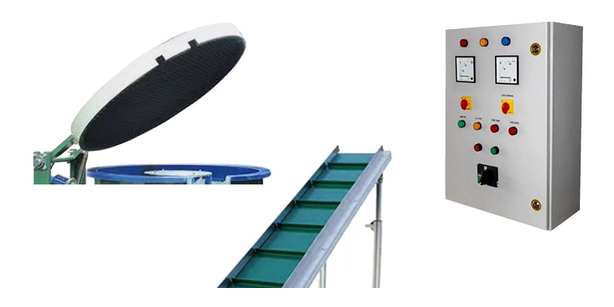

Accessories
- Sound Reduction Cover
- PLC based Control Panel
- Simple Control Panel
- Magnetic Separator
- Dosing Unit
- Auto Loading System
- Waste water filtration and recycling System

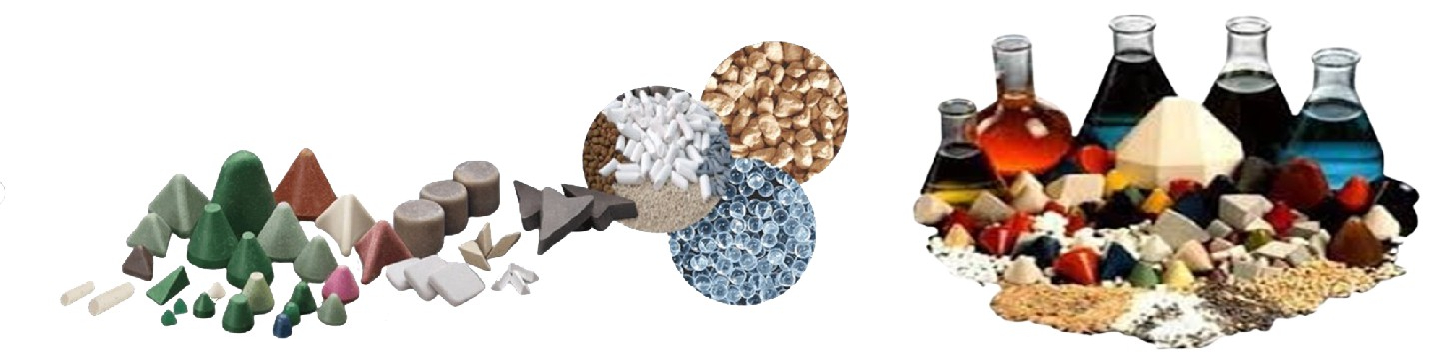

Consumables for Deburring, Finishing, Washing and Cleaning Applications
Wide variety of media and chemicals which is used in proportion with the parts
Finishing Media available in plastic, ceramic and porcelain material
Compounds for Cleaning
Aqueous cleaning compounds are widely utilized across various industrial parts cleaning methods, including spray cleaning, ultrasonic cleaning, and immersion cleaning.

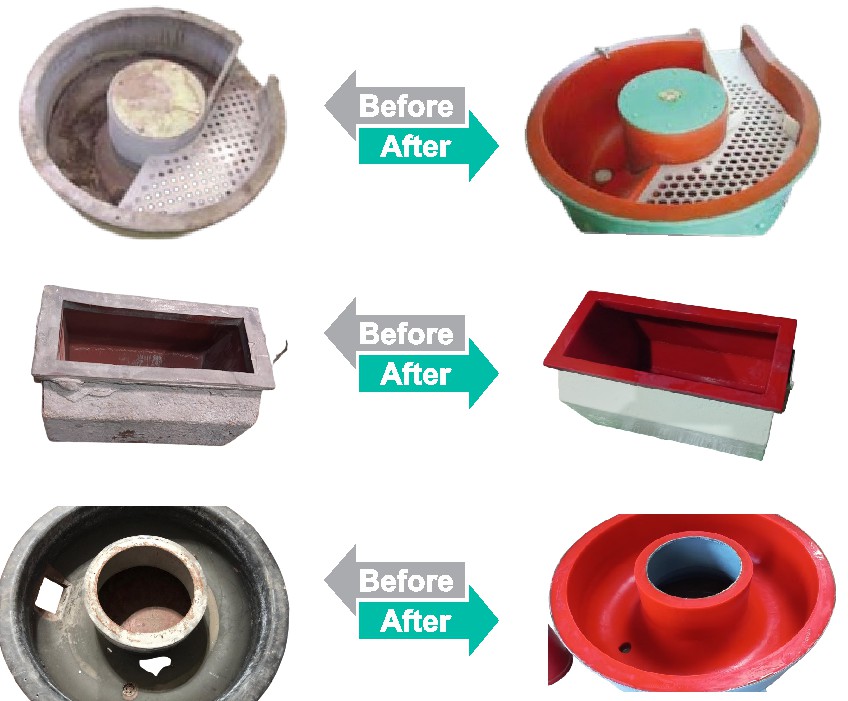

Repair & Reconditioning
Repair and recondition any type of Vibratory and Barrel Finishing Machines
Upgrades and Enhancements
Improve efficiency and performance with the latest technology and features
